Transcend Industrial e.MMC EMC210 8GB – 32GB MLC

0,000,00

Saatavuus

Toimitusaika 1-3 viikkoa

Tuotetiedot

Tuotenumero
Ota yhteyttä

Kuvaus

Transcend Industrial muisti

e.MMC

Transcend&rsquo s e.MMC-EMC210 is an Embedded Flash Drive (EFD) designed for industrial applications such as embedded system, vehicle entertainment system, GPS, games, email, Office, etc. It is a hybrid device featuring high performance, high storage capacites and small form facor which combines an embedded thin flash controller and standard MLC NAND flash memory. Transcend’s EMC210 supports industrial standard e.MMC 4.51 interface.


Features

  • Compliant with JEDEC e.MMC Specification Ver. 4.51
  • Supports three data bus widths: 1bit (default), 4bit, 8bit
  • Uses an embedded thin memory controller and MLC NAND flash
  • Mechanical design complies with JESD84-C44 Specification
  • Dual power system
  • Core voltage (VCC) 2.7-3.6V
  • I/O (VCCQ) voltage: either 1.7-1.95V or 2.7-3.6V
  • Variable clock frequencies of 0-200 MHz
  • Supports three data bus widths: 1bit (default), 4bit, 8bit
  • Static global wear leveling
  • BCH ECC:53bit/1KB
  • RoHS compliant

Specifications

Interface (connector)e.MMC 4.51
(Backwards compatible with ver. 4.41)

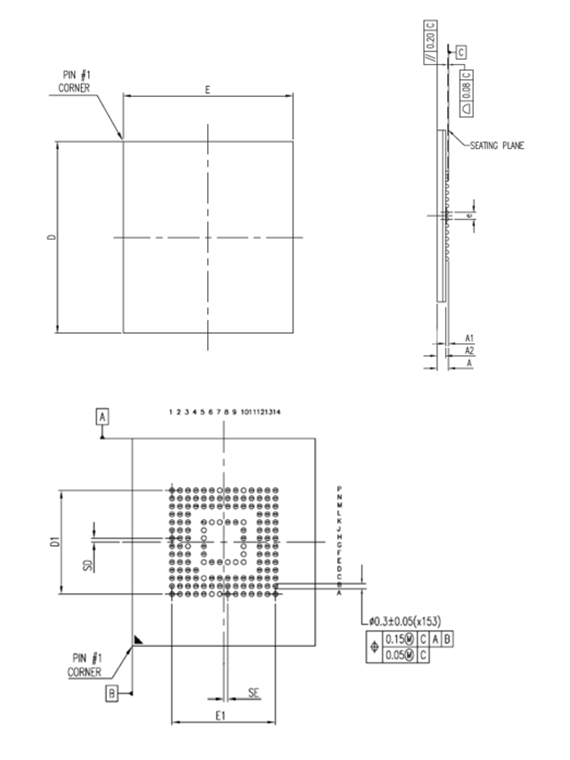

Form FactorBGA-153 (JESD84-C44)
Dimensions11.5 x 13.0 x 1.0 mm (8/16GB)
11.5 x 13.0 x 1.2 mm (32GB)
Nand FlashMLC
Capacity(GB)8GB / 16GB / 32GB
Max. R/W Performance (MB/s) (Vary by density)Read: 140MB/s, Write: 60MB/s
Op. Voltage(V)VCC = 2.7 ~ 3.6V
VCCQ = 1.65 ~ 1.95V (HS200) or 2.7 ~ 3.6V
Op. Temp.(℃ )-25℃ ~85℃
Storage Temp.(℃ )-40℃ ~85℃
Warranty1-year Limited Warranty

Order Information

8GB

  • TS8GEMC210 MLC

16GB

  • TS16GEMC210 MLC

32GB

  • TS32GEMC210 MLC
